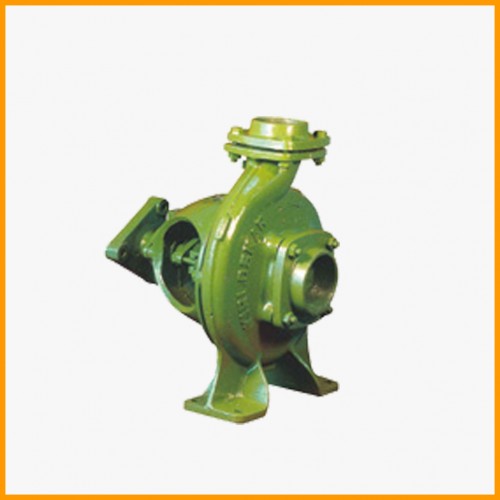

NW Agriculture End Suction Pump

Description

These pumps are used for irrigation and water supply application. They are supplied with direct/pulley drive and are electric motor driven or engine driven. Delivery size varies from 50 mm to 150 mm with a power rating of 2.2 kw to 18.33 kw.

Features

  • Suction lift upto 7.5 metres
  • Top flat efficiency curve-minimum variation in efficiency in entire operating range
  • Efficiency at par with internationally available pumps-higher upto 10 points than minimum required by Indian Standards specifications
  • Can be run direct /through pulley with engine / motor
  • Designed to prevent overloading of engine / motor
  • Designed for automatic air release during priming
  • Dynamically balanced obtaining parts ensure minimum vibrations
  • Replaceable wearing parts and hence longer life
  • Better sealing against air leakage due to greater stuffing box depth
  • Provided with outer bearing stand (against requirement) for better support

Application

  • Water supply
  • Irrigation

Specification

  • Delivery size up to 150 mm
  • Capacity up to 350 m³/hr
  • Head up to 42 m
  • Power rating 2.2 kW to 18.33 kW (3 hp to 25 hp)
